Exhaust Detection System
Exhaust detection system contributes to low-carbon green growth.
Improved existing system to capture manually by using Video camera, Megapixel camera acquires exhaust image, then applied algorithm, System for image analysis and detecting a vehicle that discharges exhaust fumes
비교분석
| Current enforcement | Enforcement with Exhaust detection system | |
|---|---|---|
| Thim | 4~5hours photographing on the spot | Automatic photographing by setting enforcement time |
| Type | Manned photographing | Photographing with 2 fixed cameras |
| Analysis method | Comparative analysis of recorded video with 2-3 hours vehicle reader | The recorded video is transmitted to the center PC for automatic analysis and storage |
| Total elapsed time | It takes 6-8 hours by car | About 30 minutes to 1 hour |
| Exposure to fumes | Deterioration of health due to constant exposure to smoke by enforcement officers | No smoke exposure |
| intermittent error | Individual errors in the process of comparing stakes | Very low error rate with automatic analysis by setting the soot concentration |
| Efficiency | Low efficiency due to a lot of time and effort invested | High work efficiency due to automation system |
installation example

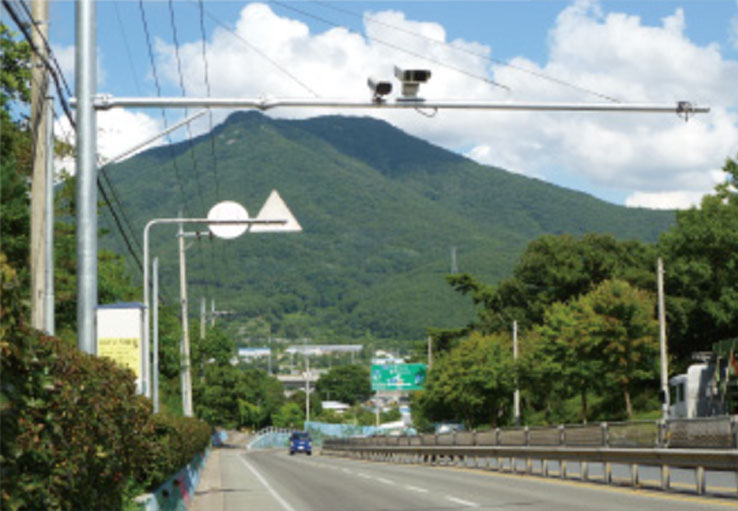

Mass production trial installation
Benefit
- Labor cost reduction, work simplification
- Reinforcing smoke control and reducing air pollution through continuous monitoring
- Establishment of exhaust vehicle information database
- Contribute to low carbon green growth, a government policy
Detailed specifications
| Camera | 2/3" CCD 1.4M Pixels | Local Control | G860-3.0GHz, 2G, 500G, 500W |
|---|---|---|---|
| Lens | 8-80mm motorized zoom | Fan device | 300cmm x 800mmaq |
| Lighting | IR-LED lights | HUB | 4 ports / USB 2.0 |
| Control board | Adaptive, timing controlled | loop detector | 5m/s vehicle detection |
| Receiver | RS-485 | Pan/Tilt | Loading weight 30Kg |
| SMPS | 5V, 12,24V | Pan 0° to 355° ± 5° | |
| Power control device | 6CH, 220V, TCP/IP | Tilt -90° to +20° /sec |
