System developed

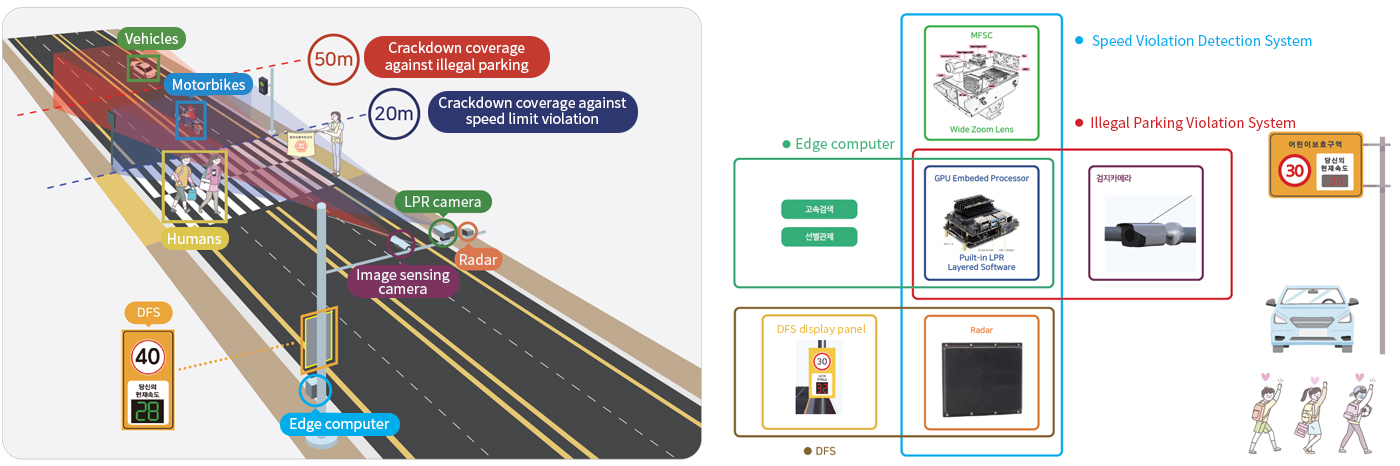

Configuration
Targets and Introductions on R&D
Comparison between Existing system and Our system
Item Existing crackdown system Multi-function Smart school zone system

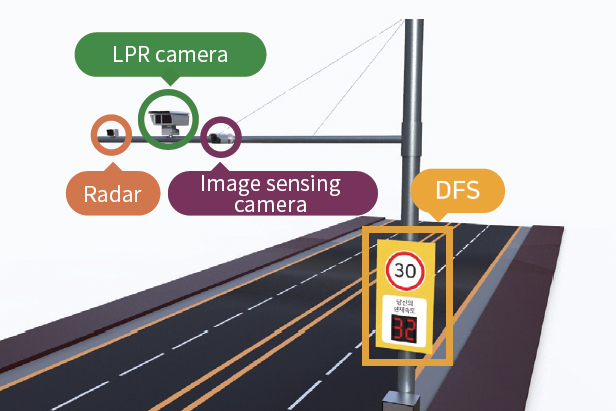

Concept

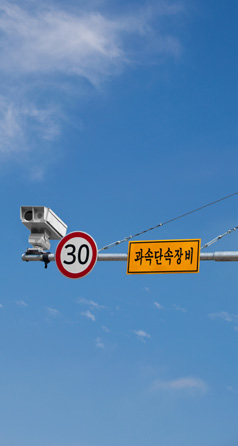

Crackdown against over-speed

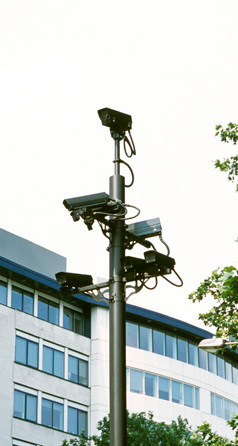

Crackdown against illegal parking

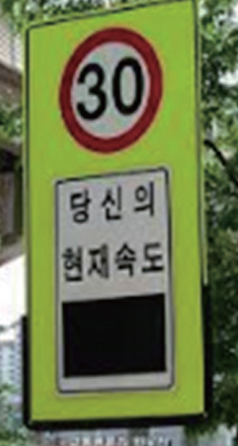

DFS
Variation of functions Single
※ Impossible to add a function 		Combination of multiple functions
※ Addition of necessary function only
Detectable crackdowns Illegal parking, Speed limit violation
(in case of addition of respective systems)		 Illegal parking, Speed limit violation, Storing kid’s tracks
Optical lens Manual operation wide-zoom, focus, iris Electro-motorized zoom
Remote control Impossible, Control at site Lens setting, Pan/Tilt, Self-diagnosis, Restoration
Sensing vehicle image Impossible, Still cut process Detecting images with the radar or the video streams, Enabling wide range of selection
Data Taking images Trigger outside, Still cut Still cut and video , Raw, JPEG, H.264
Index None, Extraction of only the texts from LPR Vehicle license number, Vehicle model, Time, Object ID / Speed of objects / Moving direction
(extracting from the terminal itself)
Searching Up to X2~3 (Fast search) x10~20 (High speed searching based on index)
Real time vehicle tracking Impossible, By rewound videos Real time high speed searching with dynamic index, Selective monitoring
Real time object tracking Impossible Humans, Trackable of motorbikes
Installation cost KRW 100 mil.
(USD 80,000, Installation of crackdown systems against traffic signal violations, speed limit violations, illegal parking and that of DFS)		 More or less KRW 50 mil. (USD 40,000)
  • The social costs must drastically come down by reducing the number of CCTVs arranged before without concerns to maximize the aesthetic effects and doing such multiple functions (crackdowns on violations of traffic signals and speed limits, security, unmanned crackdown on illegal parking) with a single multi-function smart school zone system.
  • And the video data around the children protection zone must be searched in the quickest way with key words. On top of that, the costs for operation and maintenance of main servers must come down by minimizing the power consumptions incurred from video data through the GPU parallel computing system with AI-Deep learning algorithm and embedded system.
Products for Smart school zone

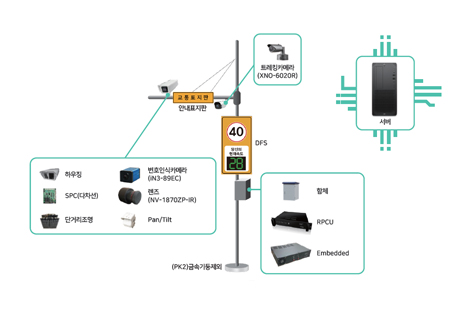

Smart school zone
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, coverts to DB the recognized vehicle information and works the functions of crackdowns on speed limit violation and illegal parking and DFS as well.

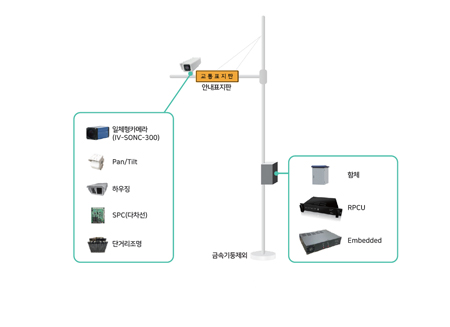

Crackdown on speed limit violations in multiple (2,3) lanes
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, coverts to DB the recognized vehicle information and works the functions of crackdowns on speed limit violations in 2 or 3 lanes.

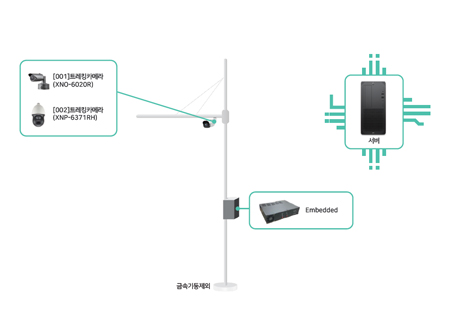

Crackdown on illegal parking (Bullet type, Dome type)
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, coverts to DB the recognized vehicle information and detects vehicles in illegal parking.

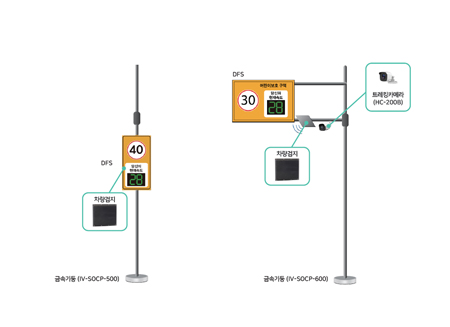

Alert system to overspeed vehicles (Short top type, Long top type)
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology and works the functions of DFS displaying the current speeds of passing vehicles.
Edge computer
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, [003]recognizes the vehicle license plate and [004] recognizes the motorbike license plate.

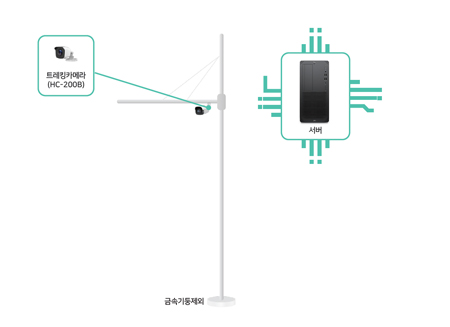

Server
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology and accumulates the data (for crackdown on violation of speed limit at the crackdown points and between the points to start and finish, high-speed searching, selective monitoring) in servers.
