Parking Management System (based on LPR)
By providing speedy and convenient environment, it will increase the value of the building.
LPR based advanced access control system enables high-efficient and user convenient parking lot operation overcoming all the weak points of legacy RF card type system.
System Features
- Intelligent algorithm and exellent recognition rate: 99% (KICT Certificate)
- Respond to environmental changes - Interested field following type (Patented technology)
- Progressive scan digital camera with 2.0M pixel of high resolution-Acquire a clear image
- Apply Intelligent power control -Auto power reset/Remote area power control function (Rebooting time-within 10 seconds)
- Semi-permanent IR-LED: more than 100M times of life cycle
- Built-in a strong DSP image processing device
- Easy operation S/W- A strong search functions by various conditions such as car registration
- plate number, date, parking time, visitor and commuter

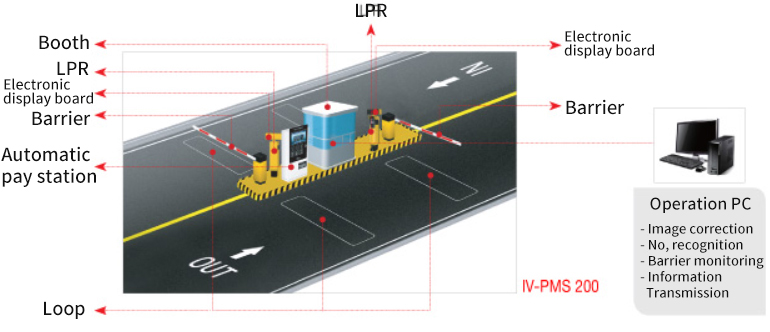

System Installation
Operation S/W
Center management S/W
- Total entry/exit lane monitoring function, remote breaker control
- Entry/exit vehicle search (date, vehicle No. parking time), blacklist vehicle registration
- Vehicle registration/modify/delete
- Fee payment function (option)
Booth operation S/W
- Entry/exit vehicle monitoring, recognition number correction
- Automatic/manual vehicle barrier control, parkingduration check
- Check vehicle on a blacklist
- Collection parking fee (option)

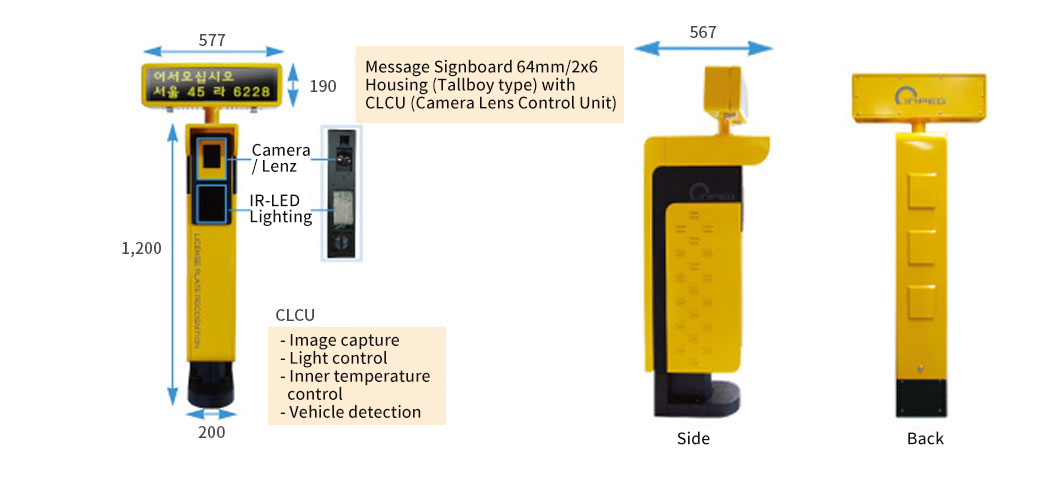

Device Structure

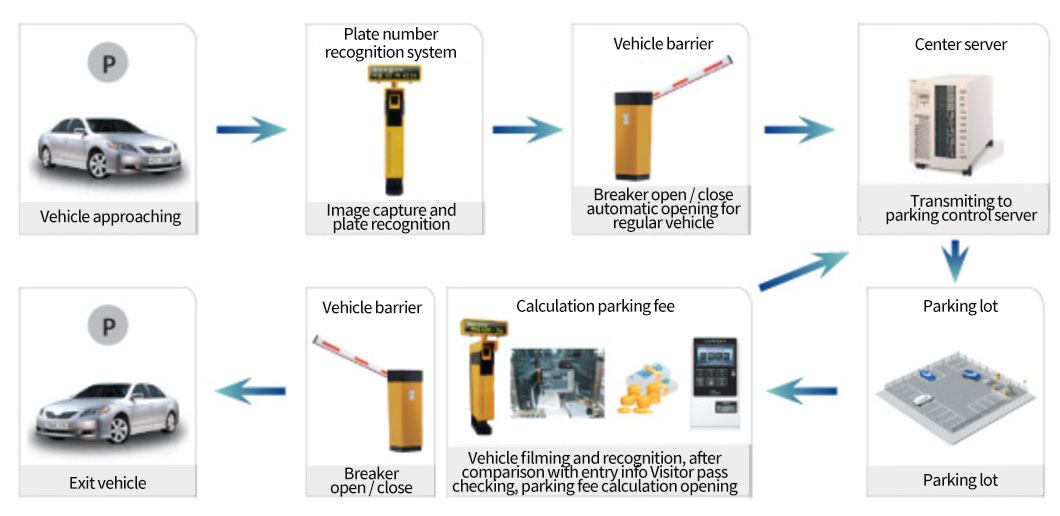

Operation Flow
Specification
| CLCU | Camera | 1/1.8° CCD 2.0M Pixels |
|---|---|---|
| Lens | M1/2" Motorized Zoom Len | |
| Lighting device | IR-LED lighting (life span 10million times) | |
| Control board | Environment responding, timing control | |
| Power control | Barrier auto recovery, pan/heater control | |
| Vehicle detector | Loop coil inductance method | |
| IIPU | CPU | Intel G860, 3.0GHz 이상 or DSP up to 1.2GHz |
| Memory | 2GB DDR3 higher | |
| Data Storage | SSD 16GB, SATA 500G HDD higher | |
| Watchdog | Watchdog Timer built in | |
| Image entry | Giga-E Interface | |
| Housing | Exterior | Rain proof/dust proof powder coating (IP45) |
| Dimension | IV-PMS 100 1,380X485X485(mm) | |
| IV-PMS 200 1,470X200X567(mm) |
