Fixed Illegal Parking and Stop Detection System
Illegal parking and stop detection system provides congestion-free road and pleasant road for local resident. Detect a vehicle without user's manual control with automatized system - Unmanned auto
detection even on the spot, resolve frequent complaint on the field of detection, Apply Scan detection
and video clip detection, Overcome limits of human tracking on regular illegal parking zone and effect
of saving time and cost. Have various models (Fixed type- 3 auto cameras, 1 semi-auto camera, Speed
Dome type Auto/Semi-auto can be interlocked with other company's system Set an exact coordinates
with the function of learning coordinates-Maximize detection efficiency.
System Features
- Type : 3 Camera type auto system / Speed Dome type auto system
- Apply private label(self-developed) algorithm with high recognition rate
- Apply Progressive Scan Digital Camera with 2.0M pixels of high resolution Acquire a clear image from vehicles with 0~200km speed
- Apply Intelligence power control server - Auto power reset / remote area power control function (Rebooting time: within 10Sec)
- Two-tier system for the OS of local controller - Shift automatically when an error occurs (Flash Disk - Hard Disk)
- Intuitive and Easy operation, S/W -Auto, Semi-auto, manual functions (from intelligent power control)

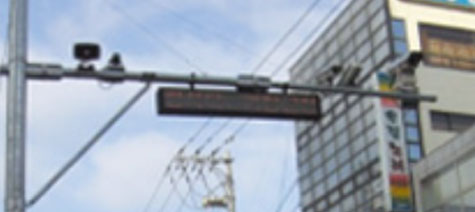

System Installation (example)
installation pictures

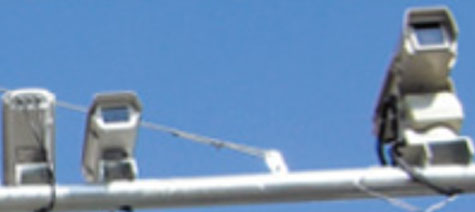

Enforcement camera

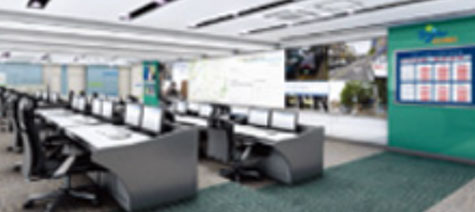

Center situation room

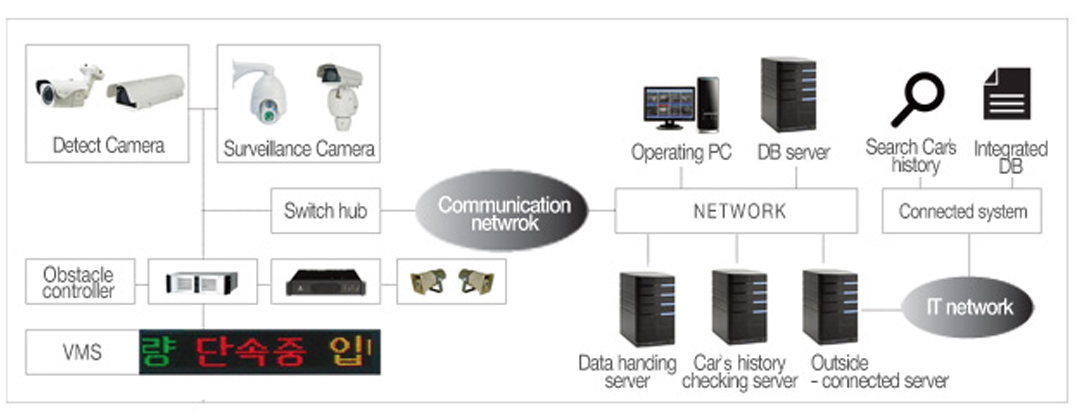

Device Structure
Operation S/W

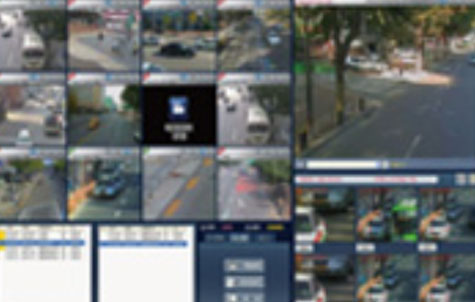

Center operation S/W
- Mark location of cameras
- Mark daily cases of investi-gation by locations
- Function of marking monthly accumulated cases
- Function of marking annually accumulated cases
Status of detection S/W
- Monitoring recording S/W
- Record detected fields (Video clip)
- Record images by date and time of recording
- Adjust recording frame

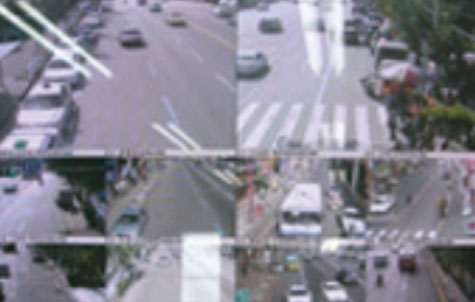

Monitoring Recording S/W
- Monitoring Recording S/W
- Video recording of crackdown site
- Save video by date and time
- Adjust the recording frame
Specification
| Surveillance Camera | 2.0M ~ 5.0M pixels Camera (Speed Dome/Box type) | Memory | 2GB DDR3 |
|---|---|---|---|
| Surveillance Lens | Optic 30 times Zoom Lens | Data Storage | SSD 16GB, SATA 500G HDD higher |
| Detect Camera | 0.41M, 2.0M, 3.0M pixels of Camera | Watchdog | WatchDog Timer built in |
| Pan/tilt | Stepping/BLDC motor (Intake weight 30Kg) | Announcement | TTS(Text To Speech) |
| Power Control Device | Auto restoration from an error, control a pan/heater | Housing | Pan and heater built in, water and dust proof type |
| UPS 1KVA | 1KVA, Rack type |
