Movable Illegal Parking and Stop Detection System
Illegal parking and stop detection system provides congestion-free road and pleasant road for local resident.
Detect a vehicle without user's manual control with automatized system - Unmanned auto detection even
on the spot, resolve frequent complaint on the field of detection, Apply Scan detection and video clip detection,
Overcome limits of human tracking on regular illegal parking zone and effect of saving time and cost. Have
various models (Moving type-install surveillance camera on a vehicle or bus) can be interlocked with other
company's system Set an exact coordinates with the function of learning coordinates-Maximize detection efficiency.
System Features
- Moving type - System of installing surveillance camera on a vehicle or a bus
- Apply private label(self-developed) algorithm with high recognition rate
- Apply Progressive Scan Digital Camera with 2.0M pixels of high resolution Acquire a clear image from vehicles with 0~200km speed
- Apply Intelligence power control server - Auto power reset / remote area power control function (Rebooting time: within 10Sec)
- Two-tier system for the OS of local controller - Shift automatically when an error occurs (Flash Disk - Hard Disk)
- Intuitive and Easy operation, S/W -Auto, Semi-auto, manual functions (from intelligent power control)

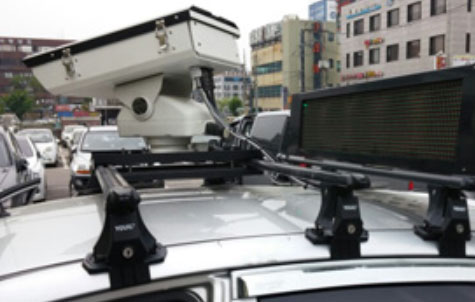

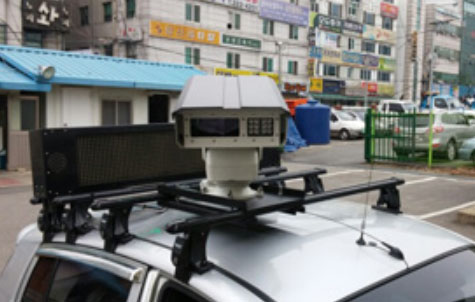

System Installation (example)
Device Structure
Operation S/W
Center operation S/W
- Mark location of cameras
- Mark daily cases of investi-gation by locations
- Function of marking monthly accumulated cases
- Function of marking annually accumulated cases
Status of detection S/W
- Monitoring recording S/W
- Record detected fields (Video clip)
- Record images by date and time of recording
- Adjust recording frame
Monitoring Recording S/W
- Monitoring Recording S/W
- Video recording of crackdown site
- Save video by date and time
- Adjust the recording frame
Specification
| Surveillance Camera | 1/1.8" CCD 2.0Megapixel | Memory | 2GB DDR3 |
|---|---|---|---|
| Surveillance Lens | 1/2", 8~80mm | Data Storage | 120GB higher |
| Video Camera | 1/3" CMOS 1.4Megapixel | OS | Window 7 |
| Video Lens | 1/3", 5~50mm | Monitor | Touch screen panal, 1024 x 768 (4:3) |
| Illuminator | Power-LED Illunator | Invertor | Rated : 750W , Max : 1,000W |
| MBoard | RS-232, MAX 100m | GPS | Interface : USB2.0 |
| PTBoard | RS-232, max 100m | Joystick | RS485/422, RS232 communication method |
| Electronic display | 1line 6rows both sides | Keyboard | Wireless keyboard |
| Housing | Pan/heater built in, rain/dust proof powder coating |
