Crackdown on speed limit at the crackdown points (on 1, 2, 3 lanes)
Function / Application
iSC6-LN1-DT1 is the system to crack down on the vehicles in violation of speed limit on the main roads (with 1, 2, 3 lanes) by monitoring them for 24 hours a day.
Crackdown on speed limit violation at crackdown points
Collection of real-time traffic big data

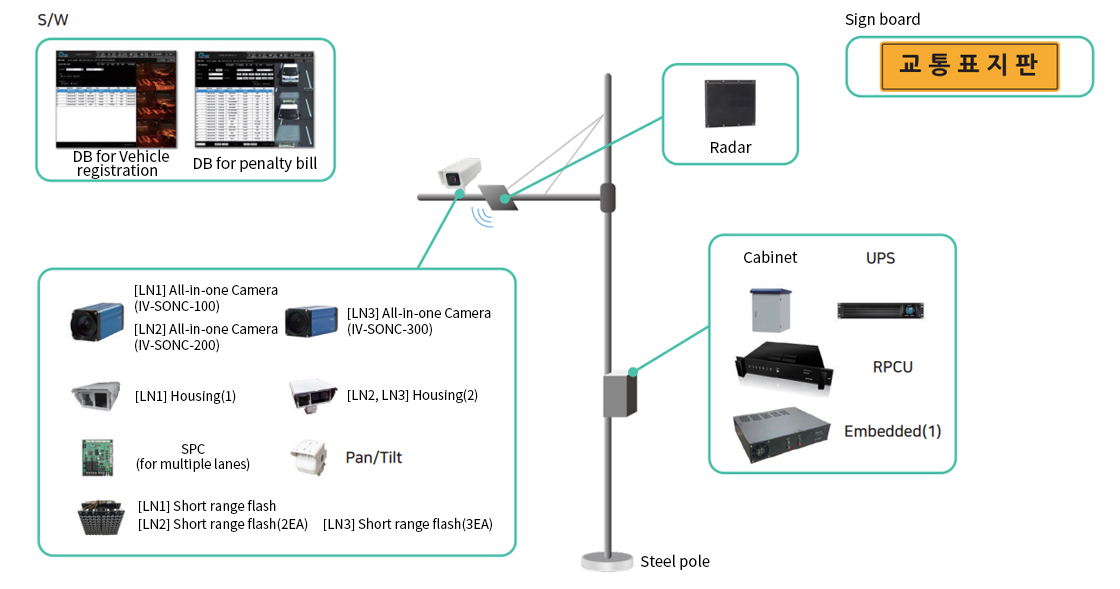

Configuration
iSC6-(LN1, LN2, LN3)-DT1
Certification number: No. 2021-516 / Product identification number: 24411841, 24411842, 24411843
| Product | Model | Specifications |
|---|---|---|
| All-in-one camera | (LN1) IV-SONC-100 (LN2) IV-SONC-200 |
- 2048x1536 pixels - Global shutter 1/1.8” CMOS sensor - 30 fps @ full resolution (MJPEG,H.264) - 15 fps @ full resolution (YUV420) - 6~210mm(x35) 3 motorized IR corrected zomm lens - 1 click auto focus |
| (LN3) IV-SONC-300 | - LPR 9M pixel - 4K UHD 30 fps @ 4096 x 2160 pixels - Global sutter 1“CMOS sensor - 10~300mm Zoom Lens - GenlCam, ONVIF - JPEG, H.264/H265 |
|
| DB for vehicle registration | IV-SIDB-100 | - The texts recognized by LPR is to synchronize with the DB of vehicle registration office. |
| DB for penalty bill | IV-SIBL-100 | - Other than output of the penalty bill against the violation at the crackdown points |
| Short range flash | (LN1) IV-SIPL-100 (LN2) IV-SIPL-100 (LN3) IV-SIPL-100 |
- Input voltage : +24VDC +/- 1.5V - Consumption current : 1.0A / 30 Hz (With FAN) - Control signal : Open Collector, TTL, Optocoupler - Trigger input range : ~ 30 Hz - Operating humidity range : Not more than 90% - Storage temperature range : -30 C ~ +80 C |
| Housing | (LN1) IV-SOHL-400 | - Size: 400×460×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater - Color: Ivory |
| (LN2) IV-SOHL-500 (LN3) IV-SOHL-500 |
- Size: 400×460×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater - Color: Ivory |
|
| SPC(for multiple lanes) | IV-SILC-100 | - Camera control and P/T control board |
| P/T | SPT-301 |
- Input voltage: AC 220 V 60Hz / AC 110 V 60Hz / AC 24 V 60Hz - Power consumption: Pan: 6W / Tilt: 15W – Operation speed: Left/Right: 6.2˚/sec, Up/Down: 3˚/sec - Operation angle: Left/Right: 0~355˚, Up/Down: +30˚~ -60˚ - Operating Temperature: -40℃~+70℃ - Operating Humidity: Below 90% - Allowable load: max. 30kg – Size: 290(L)x250(H)x213(W) |
| Embedded 1 | IV-SIIX-100 |
- LPR, Detecting signals - CPU : Quad-core ARM® Cortex-A57 @ 1.43 GHz - GPU : 128-core Maxwel - RAM : 4 GB 64-bit LPDDR4 25.6 GB/s - HDD: 512GB - OS : Ubuntu |
| RPCU | IV-RPCU-200 |
- Input voltage: AC 220v, 50–60 Hz - Output voltage: AC22-V, 50~50 Hz, 4 ports - Rated output: 1.76KW - LAN communication: 1 port TCP/IP - Serial communication: 1 port 9600bps - Temperature: 10℃ ~ 80℃ - Software: Server program - Size: 420(W)x320(D)x88(H)mm |
| Cabinet | IV-SORA-100 |
- Material: SUS–304 / Powder Coating with white urethane - Temperature Control: Built-in fan - Door: Both-sided door - Size: 640(W)X640(D)x900(H)mm |
| UPS | IV-SORA-101 |
- Power capacity: 900W/1500VA - Output voltage: 230 V - Output frequency: 47~63 Hz (based on 60 Hz) - Output waveform: Pure Sino wave - Input voltage: 230 V - Input voltage range: 180 to 287 V (170 to 300 V) - Input frequency: 50/60 Hz +/-3 Hz (auto-sensing) |
| Steel pole 1 | IV-SOCP-200 | - 8000x 267ø, 6000 arm [mm] |
| Sign board | IV-SIED-100 | - Material: Aluminum / General Reflection - Size: 1200×2500 2T Sign board for pre-caution |
| Radar sensing | IV-SORD-100 | - Speed estimation with sensing data of the radar |
| Negotiable on the unit price | total contract cost and design. |
