Crackdown on speed limit violation in the longitudinal road section between the crackdown points (on 1, 2, 3 lanes)
Function / Application
iSC7-LN1-DT1 is the system to crack down on the vehicles in violations of speed limit in the longitudinal road section (with 1, 2, 3 lanes) by estimation of the time differences and the distance between the points to start and finish.
Crackdown on speed limit violation between the points to start and finish
Collection of real time traffic big data

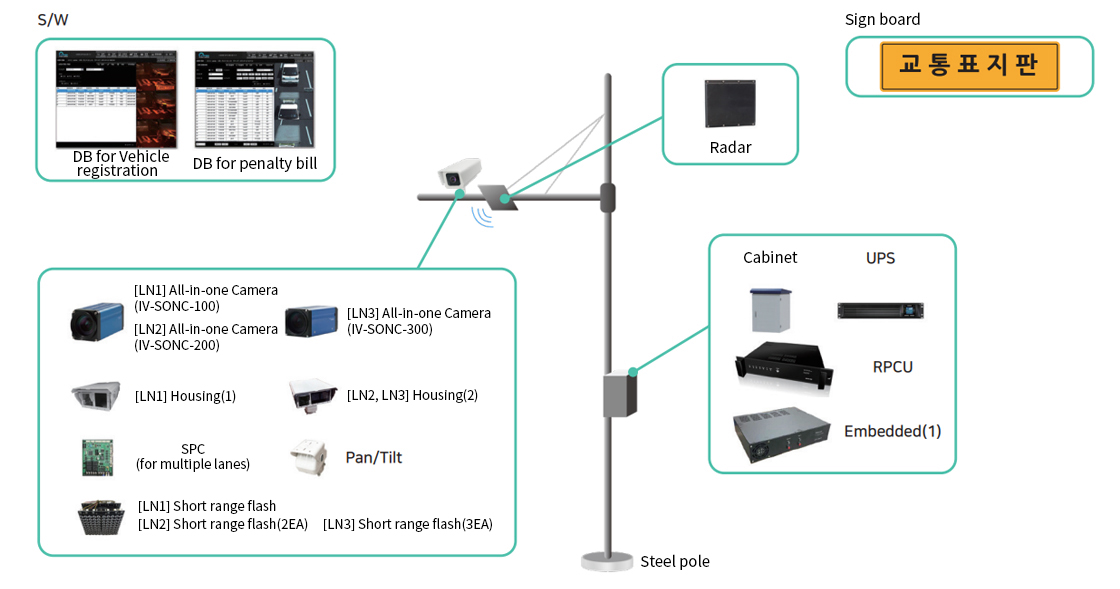

Configuration
iSC7-(LN1, LN2, LN3)-DT1
Certification number: No. 2021-516 / Product identification number: 24411845, 24411846, 24411847
| Product | Model | Specifications |
|---|---|---|
| All-in-one camera | (LN1) IV-SONC-100 (LN2) IV-SONC-200 |
- 2048x1536 pixels - Global shutter 1/1.8” CMOS sensor - 30 fps @ full resolution (MJPEG,H.264) - 15 fps @ full resolution (YUV420) - 6~210mm(x35) 3 motorized IR corrected zomm lens - 1 click auto focus |
| (LN3) IV-SONC-300 | - LPR 9M pixel - 4K UHD 30 fps @ 4096 x 2160 pixels - Global sutter 1“CMOS sensor - 10~300mm Zoom Lens - GenlCam, ONVIF - JPEG, H.264/H265 |
|
| DB for vehicle registration | IV-SIDB-100 | - The texts recognized by LPR is to synchronize with the DB of vehicle registration office. |
| DB for penalty bill | IV-SIBL-100 | - Other than output of the penalty bill against the violation at the crackdown points |
| Short range flash | (LN1) IV-SIPL-100 (LN2) IV-SIPL-100 (LN3) IV-SIPL-100 |
- Input voltage : +24VDC +/- 1.5V - Consumption current : 1.0A / 30 Hz (With FAN) - Control signal : Open Collector, TTL, Optocoupler - Trigger input range : ~ 30 Hz - Operating humidity range : Not more than 90% - Storage temperature range : -30 C ~ +80 C |
| Housing | (LN1) IV-SOHL-400 | - Size: 400×460×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater - Color: Ivory |
| (LN2) IV-SOHL-500 (LN3) IV-SOHL-500 |
- Size: 493×565×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Color: Ivory - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater |
|
| SPC(for multiple lanes) | IV-SILC-100 | - Camera control and P/T control board |
| P/T | SPT-301 |
- Input voltage: AC 220 V 60Hz / AC 110 V 60Hz / AC 24 V 60Hz - Power consumption: Pan: 6W / Tilt: 15W – Operation speed: Left/Right: 6.2˚/sec, Up/Down: 3˚/sec - Operation angle: Left/Right: 0~355˚, Up/Down: +30˚~ -60˚ - Operating Temperature: -40℃~+70℃ - Operating Humidity: Below 90% - Allowable load: max. 30kg – Size: 290(L)x250(H)x213(W) |
| Embedded 1 | IV-SIIX-100 |
- LPR,Detecting signals - CPU : Quad-core ARM® Cortex-A57 @ 1.43 GHz - GPU : 128-core Maxwel - RAM : 4 GB 64-bit LPDDR4 25.6 GB/s - HDD: 512GB - OS : Ubuntu |
| RPCU | IV-RPCU-200 |
- Input voltage: AC 220v, 50–60 Hz - Output voltage: AC22-V, 50~50 Hz, 4 ports - Rated output: 1.76KW - LAN communication: 1 port TCP/IP - Serial communication: 1 port 9600bps - Temperature: 10℃ ~ 80℃ - Software: Server program - Size: 420(W)x320(D)x88(H)mm |
| Cabinet | IV-SORA-100 |
- Material: SUS–304 / Powder Coating with white urethane - Temperature Control: Built-in fan - Door: Both-sided door - Size: 640(W)X640(D)x900(H)mm |
| UPS | IV-SORA-101 |
- Power capacity: 900W/1500VA - Output voltage: 230 V - Output frequency: 47~63 Hz (based on 60 Hz) - Output waveform: Pure Sino wave - Input voltage: 230 V - Input voltage range: 180 to 287 V (170 to 300 V) - Input frequency: 50/60 Hz +/-3 Hz (auto-sensing) |
| Steel pole 1 | IV-SOCP-200 | - 8000x 267ø, 6000 arm [mm] |
| Sign board | IV-SIED-100 | - Material: Aluminum / General Reflection - Size: 1200×2500 2T Sign board for pre-caution |
| Radar sensing | IV-SORD-100 | - Speed estimation with sensing data of the radar |
| Negotiable on the unit price | total contract cost and design. |
