Alert system to overspeed vehicles (Short top type, Long top type)
Function / Application
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology and works the functions of DFS displaying the current speeds of passing vehicles.
Real time traffic big data collection
DFS

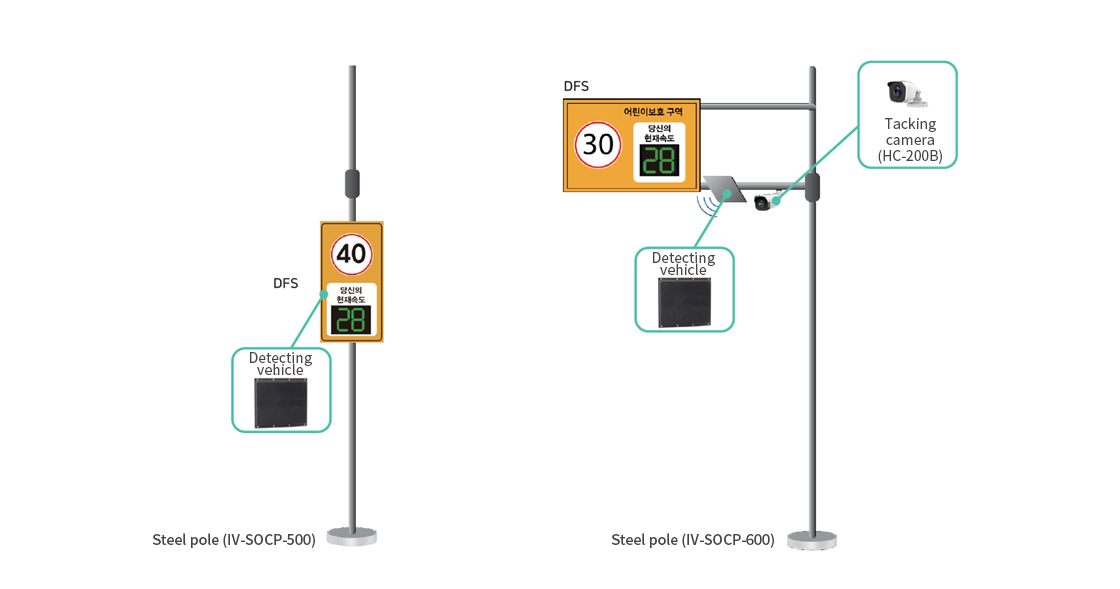

Configuration
iSZ1-DFS-(001, 002)
Certification number: No. 2022-119 / Product identification number: 24590270, 24590274
| Product | Model No. | Specifications |
|---|---|---|
| Detecting vehicle | V-SIID-300 | - Channel No.: Dual Channel / PACK - Power/communication line connection: CASCADE connection method (varied on models) - Operation: Presence mode operation(Realtime presence mode vehicle detect operation.) - Power: Single DC Source: +12 to 30V DC - Temperature: -34°C to +74°C (Operating) - Monitoring the real-time loop status (failure/normal for head and lead) |
| Steel pole | IV-SOCP-500 | - 4000x 114.3ø |
| IV-SOCP-600 | - 8000x 267ø, 6000 arm [mm], 24m | |
| Tacking camera | HC-200B | - 2 Mega pixel high performance CMOS - 1920x 1080 resolution - 3.6mm Fixed lens |
| DFS | DFS | - Sensing and displaying vehicle speeds |
| Negotiable on the unit price | total contract cost and design |
