Edge computer
Function / Application
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, [003] recognizes the vehicle license plate and [004] recognizes the motorbike license plate
Real time traffic big data collection
Detection of moving objects
Edge
[003]Vehicles LPR
[004]Motorbikes LPR

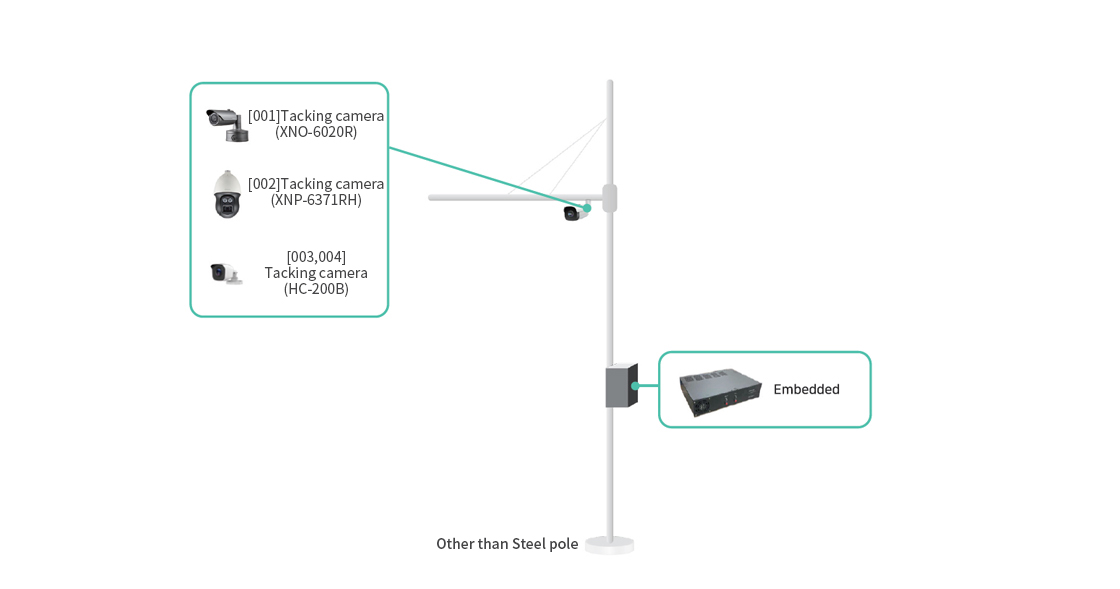

Configuration
iSZ1-EZ1-(001, 002, 003, 004)
Certification number: No. 2022-119 / Product identification number: 24590275, 24590276, 24590277, 24590278
| Product | Model No. | Specifications |
|---|---|---|
| Tacking camera | XNO-6020R | - 1/2.8 type 2 Mega pixel CMOS - 1920 x 1080@60fps - 4mm Fixed focus lens - H.265, H.264, MJPEG Codec support - 150dB WDR - IP67- WiseStreamⅡsupport |
| XNP-6371RH | 1.Camera - 1600 x 1200 pixels , 1/1.8” 30fps, Global shutter CMOS - MJPEG & H264 streaming - ONVIF Support(Optional) - Bracket mode (Max. 4frames) 2.Lens - Bacl Focal Length : 7.57mm - Resolution : 3MP - Mount: M12 x 0.5 - Iris : Fixed - Sensor : 1/1.8” CCD/CMOS - Image Format : 7.18x5.38,8.933 |
|
| HC-200B | - 2 Mega pixel high performance CMOS - 1920x 1080 resolution - 3.6mm Fixed lens | |
| Embedded | IV-SIIX-100,200 | - CPU : Carmel ARM (6 cores,64bit) - GPU : 384 NVIDIA CUDA Core - RAM : 8GB LPDDR4 - HDD : 1TB - OS : Ubuntu |
| Negotiable on the unit price | total contract cost and design |
