Crackdown on illegal parking (Bullet type, Dome type)
Function / Application
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, coverts to DB the recognized vehicle information and detects vehicles in illegal parking.

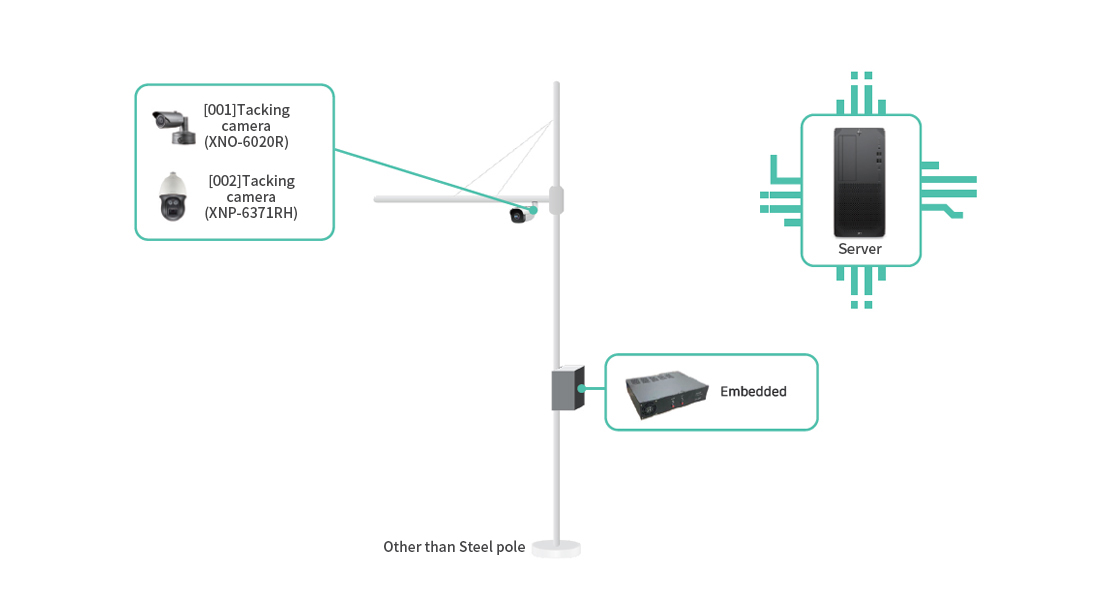

Product composition
iSZ1-MT1-(001, 002)
Certification number: No. 2022-119 / Product identification number: 24590268, 24590269
| Product | Model | Specifications |
|---|---|---|
| Tacking camera | XNO-6020R | - 1/2.8 type 2 Mega pixel CMOS - 1920 x 1080@60fps - 4mm Fixed focus lens - H.265, H.264, MJPEG Codec support - 150dB WDR - IP67- WiseStreamⅡsupport |
| XNP-6371RH |
1. Camera - 1/2 type 2.17 Mega pixel CMOS - H.265, H.264,MJPEG Dual codec support - Progressive - Color:0.00016Lux (F1.5,2sec), Black and white:0Lux (IR LED On) 2. Lens - Focal distance: 6~222mm (Optical X37) –Aperture ratio: F1.5(Wide) ~ F4.6(Tele) - Minimum object distance:1.5m(3.28ft) –Lens type: DC Auto Iris - Mount type: Board-in Type –Focus control: AF / One-ShotAF / Fixed focal point |
|
| Embedded | IV-SIIX-100,200 |
- CPU : Carmel ARM (6 cores,64bit) - GPU : 384 NVIDIA CUDA Core - RAM : 8GB LPDDR4 - HDD : 1TB - OS : Ubuntu |
| 서버 | HP IDS Tower G5 WKS |
- HP IDS Tower G5 WKS - Intel Xeon W-1250 3,3GHz 2666MHz - CPU 32GB - DDR4 3200 UDNIMM NECC - Memory 2TB |
| Negotiable on the unit price | total contract cost and design |
