Smart school zone
Function / Application
This is the system that analyzes in real time the images collected from a camera at the edge with ICT technology, coverts to DB the recognized vehicle information and works the functions of crackdowns on speed limit violation and illegal parking and DFS as well.
Real time traffic big data collection
Crackdown on speed limit violation
Crackdown on illegal parking
DFS integration

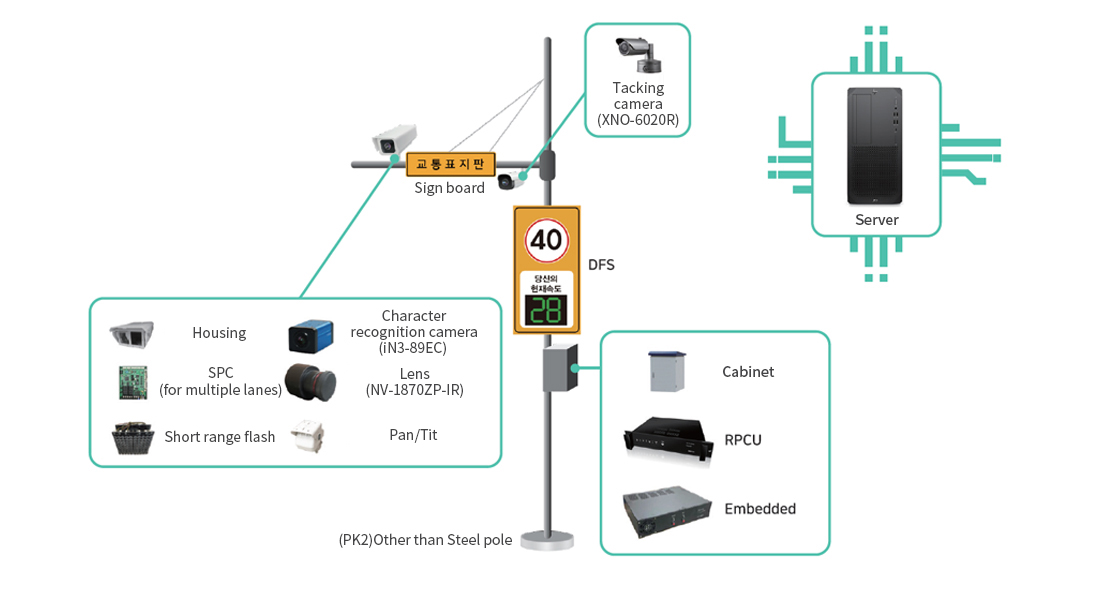

Configuration
iSZ1-SS1-(PK1, PK2)
Certification number: No. 2022-119 / Product identification number: 24592871, 24592870
| Product | Model No. | Specifications |
|---|---|---|
| Character recognition camera | iN3-89EC | - LPR 8.9M pixel - 4K UHD 30 fps @ 4096 x 2160 pixels - Global sutter CMOS sensor - GenlCam, ONVIF - JPEG, H.264/H265 |
| Lens | NV-1870ZP-IR | - Zoom Ratio : 1.5X 이상 - Mount : C-Mount or CS-Mount - Iris Range : F2.8 이상 - Operating Temperature : -10℃ ~ 50℃ |
| Tacking camera | XNO-6020R | - 1/2.8 type 2 Mega pixel CMOS - 1920 x 1080@60fps - 4mm Fixed focus lens - H.265, H.264, MJPEG Codec support - 150dB WDR - IP67 - WiseStreamⅡsupport |
| Short range flash | IV-SIPL-100 | - Input voltage : +24VDC +/- 1.5V - Consumption current : 1.0A / 30 Hz (With FAN) - Control signal : Open Collector, TTL, Optocoupler - Trigger input rang e : ~ 30 Hz - Operating humidity range : Not more than 90% - Storage temperature range : -30 C ~ +80 C |
| Housing | IV-SOHL-500 | - Size: 400×460×192 (H) mm - Material: Aluminum - Filter: Front filter - Opening at top - Cable inlet (Water-tightening connector, 12/24 pin round AMP connector) - Built-in fan/heater - Color: Ivory |
| SPC(for multiple lanes) | IV-SILC-100 | - Camera control and P/T control board |
| P/T | SPT-301 | - Input voltage: AC 220 V 60Hz / AC 110 V 60Hz / AC 24 V 60Hz - Power consumption: Pan: 6W / Tilt: 15W – Operation speed: Left/Right: 6.2˚/sec, Up/Down: 3˚/sec - Operation angle: Left/Right: 0~355˚, Up/Down: +30˚~ -60˚ - Operating Temperature: -40℃~+70℃ - Operating Humidity: Below 90% - Allowable load: max. 30kg – Size: 290(L)x250(H)x213(W) |
| Embedded | IV-SIIX-100,200 | - CPU : Carmel ARM (6 cores,64bit) - GPU : 384 NVIDIA CUDA Core - RAM : 8GB LPDDR4 -HDD : 1TB - OS : Ubuntu |
| RPCU | IV-RPCU-200 | - Input voltage: AC 220v, 50–60 Hz - Output voltage: AC22-V, 50~50 Hz, 4 ports - Rated output: 1.76KW - LAN communication: 1 port TCP/IP - Serial communication: 1 port 9600bps - Temperature: 10℃ ~ 80℃ - Software: Server program - Size: 420(W)x320(D)x88(H)mm |
| Cabinet | IV-SORA-100 | - Material: SUS–304 / Powder Coating with white urethane - Temperature Control: Built-in fan - Door: Both-sided door - Size: 640(W)X640(D)x900(H)mm |
| Sign board | IV-SIED-100 | - Material: SUS–304 / Powder Coating with white urethane - Temperature Control: Built-in fan - Door: Both-sided door - Size: 640(W)X640(D)x900(H)mm |
| Server | HP IDS Tower G5 WKS | - HP IDS Tower G5 WKS - Intel Xeon W - 1250 3,3GHz 2666MHz - CPU 32GB - DDR4 3200 UDNIMM NECC - Memory 2TB |
| DFS | DFS | - Sensing and displaying vehicle speeds |
| Steel pole | (Including PK1) IV-SOCP-200 |
- 8000x 267ø, 6000 arm [mm], 24m |
| Negotiable on the unit price | total contract cost and design. |
