AVI (Automatic Vehicle Identification) System (Multi Function ITS)

The AVI system provides accurate and reliable vehicle information collection. LPR camera and vehicle detector that are installed at main road, recognizes vehicles plate number and measuresspeed of passing vehicle and traffic value. The result of recognition and other information will be sent to center in real-time.

System Features

  • Acquisition clear image of plate number and other information by using high-resolution digital color camera (2.0M pirxels).
  • Be able to collect traffic information of particular section / point.
  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • IR-LED Illuminator built-in : It does not interfere with the driver's vision.
  • Built-in DSP image processing device.
  • Various powerful search functions of saved image and text information.
  • Low-power system configuration with solar panel (option)

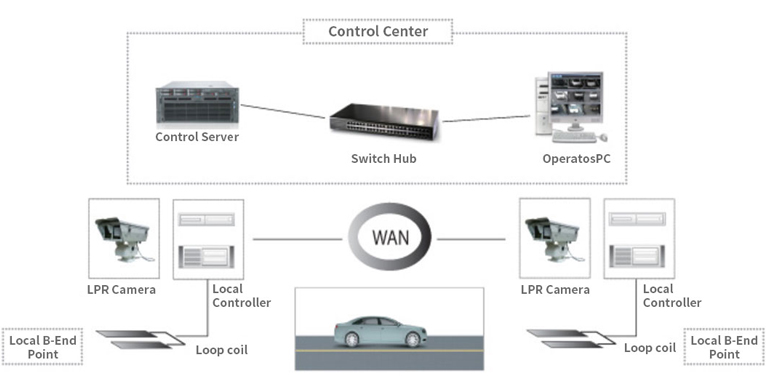

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Analysis function
  • Set access permissions for each officer

Search S/W

  • Search vehicles by time, daily, monthly
  • Print search result as excel sheet
  • Search vehicles by plate number and lane number
  • Search by each vehicles

Device Structure

Operation Flow

Specification

Camera CCD 2.0M Pixels CPU Intel G860 3.0GHz higher or
DSP up to 1.2GHz
Lens Lens Motorized Zoom Lens, 8~80mm Memory 2GB DDR3 higher
Illuminator IR-LED (semi-permanent, more than 100M times) Data storage SSD 32GB, SATA 500G HDD higher
Control board Timing control, environmental responding Watchdog Built-in (recover function)
Power control Auto-recover, pan/heater control Image input Giga-E Interface
Vehicle detector laser, loop, video detector (selectable) Dimension 332x206x595(mm), 17kg
Housing Rain/dust proof powder coating (IP 66 certification)
