Intelligent Integrated ITS

LPR Application

Crime Prevention System (Multi Function ITS)

Crime prevention system implements a society free of crime. Recognizes vehicles plate number passing by road and transmits recognition result to center.Then center system separates vehicles by wanted, stolen and defaulted and provides path tracking, security of evidence, etc. quickly.

System Features

  • Provides wanted vehicle information with path tracing, prompt action and security of evidence.
  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Dual line number recognition using high-resolution digital color camera (2.0M pixels).
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • Consecutive image capture for three times per one vehicle – first: plate number, second: driving seat, third: loading part.
  • Built-in DSP image processing device.
  • Various powerful search functions of saved image and text information.
  • Low-power system configuration with solar panel (option)

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Alarming wanted(criminal) vehicles

Search S/W

  • Search vehicles by time, daily, monthly
  • Search 3 frames (plate, driver, cargo) by each vehicle
  • Register and search blacklist or wanted vehicles

Device Structure

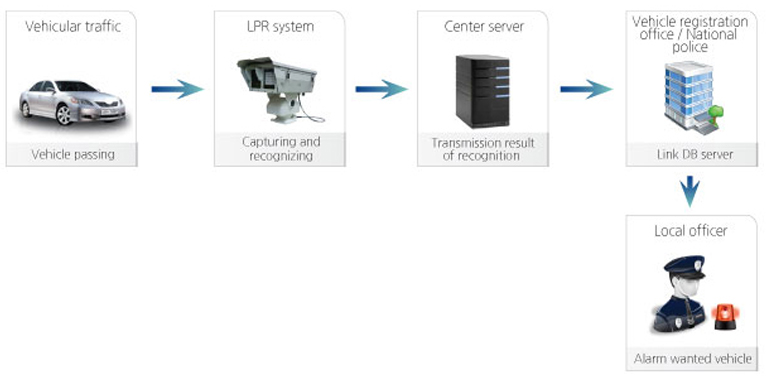

Operation Flow

Specification

Camera 1/1.8 " Progressive scan CCD sensor 2.0Mega pixel CPU Intel G860 3.0GHz higher or
DSP up to 1.2GHz
Lens Motorized zoom lens 8~80mm (10x) Memory 2GB DDR3 higher
Illuminator IR-LED (semi-permanent, more than 100M times) Data storage SSD 32GB, SATA 500G HDD higher
Vehicle detector Loop detector, video detector, laser detector (selectable) Watchdog Built-in (recover function)
Pan/Tilt Allowable load until 30Kg Image input Giga-E Interface
Power control Auto-recover, pan/heater control Operating temp -20°C ~ 50°C
Housing Rain/dust proof powder coating (IP 66 certification) Power AC220V / 50-60Hz
Dimension 332(W) x 206(D) x 595(H) weight 17Kg (Including pan-tilt 25Kg)
