Bus Lane Violation Enforcement System

Bus lane violation enforcement system provides smooth public transportation flow for bus driver and passenger. In order to ensure the smooth flow of bus traffic, the system is installed on the bus lane and recognize passing vehicles and detect vehicles in violation of bus lane. The result of recognition will be sent to center and automatically issue bills to vehicles in violation of bus lane after check of vehicle.

System Features

  • Acquisition clear image of plate number and other information by using high-resolution digital color camera (2.0M pirxels).
  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Consecutive image capture for three times per one vehicle – first: plate number, second: driving seat, third: loading part.
  • Built-in DSP image processing device.
  • By auxiliary video storage, it can judge vehicles in violation of lane.
  • Various powerful search functions of saved image and text information.
  • Center data transfer method : Wireless or cable mode can be selected.
  • Low-power system configuration with solar panel (option)

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Analysis function
  • Set access permissions for each officer

Search S/W

  • Search vehicles by time, daily, monthly
  • Print search result as excel sheet
  • Search vehicles by plate number and lane number
  • Search by each vehicles

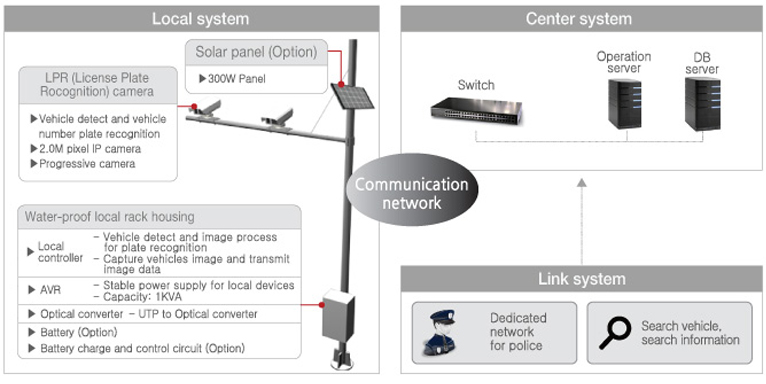

Device Structure

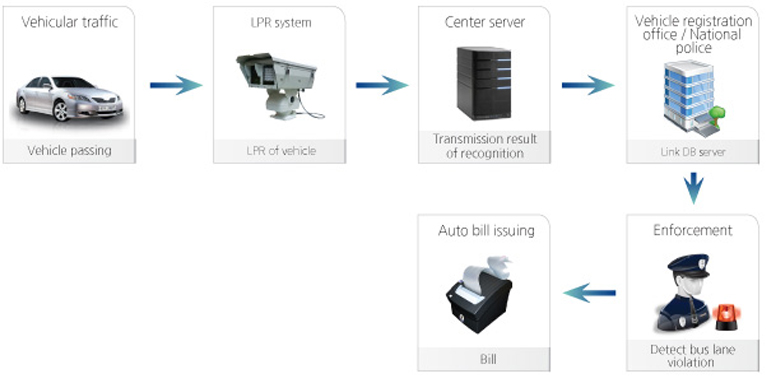

Operation Flow

Specification

Camera 1/1.8" Progressive scan CCD sensor 2.0Mega pixel CPU Intel G860 3.0GHz higher or
DSP up to 1.2GHz
Lens Motorized zoom lens 8~80mm (10x) Memory 2GB DDR3 higher
Illuminator IR-LED (semi-permanent, more than 100M times) Data storage SSD 32GB, SATA 500G HDD higher
Vehicle detector laser detector, loop detector, video detector (selectable) Watchdog Built-in (recover function)
Pan/Tilt Allowable load until 30Kg Operating temp -20°C ~ 50°C
Housing Rain/dust proof powder coating (IP 66 certification) Power AC 220V / 50 ~ 60Hz
Dimension 332(W)x206(D)x595(H)
weight 17Kg (Including pan-tilt 25Kg)
