Intelligent Integrated ITS

LPR Application

Speed Violation Enforcement System

Prevent traffic accident through speed camera system. Recognizes speeding vehicle plate number passing road for 24 hours day and night. The result of recognition will be sent to center and automatically issue bills to vehicles in speeding violation after check of vehicle.

System Features

  • Acquisition clear image of plate number and other information by using high-resolution digital color camera (2.0M pirxels).
  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Speed and signal violation enforcement at the same time.
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • Consecutive image capture for three times per one vehicle - first: plate number, second: driving seat, third: loading part.
  • Built-in DSP image processing device.
  • Detect and observe vehicles by type.
  • Various powerful search functions of saved image and text information.
  • Low-power system configuration with solar panel (option)

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Alarming wanted(criminal) vehicles
  • Alarming violation vehicle in speed
  • Display vehicle speed

Search S/W

  • Search vehicles by time, daily, monthly
  • Search 3 frames (plate, driver, cargo) by each vehicle
  • Register and search blacklist or wanted vehicles
  • Search vehicle by speeding
  • Set access permissions for each officer

Device Structure

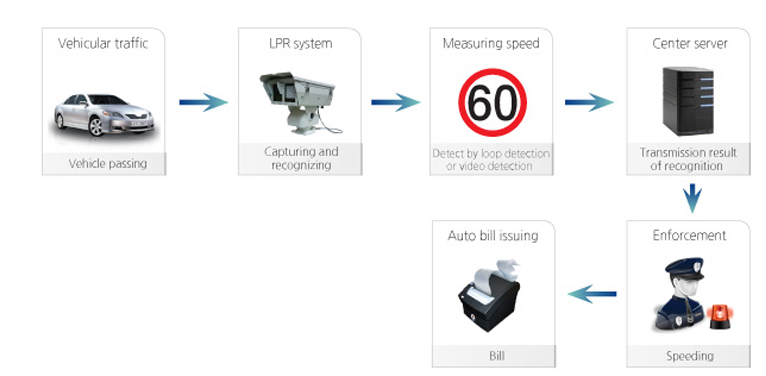

Operation Flow

Specification

Camera CCD 2.0M Pixels CPU Intel G860 3.0GHz higher or
DSP up to 1.2GHz
Lens Lens Motorized Zoom Lens, 8~80mm Memory 2 GB DDR3 or higher
Illuminator IR-LED (semi-permanent, more than 100M times) 저장장치 SSD 32GB, SATA 500G HDD or higher
Control board Timing control, environmental responding Watchdog Built-in (recover function)
Power control Auto-recover, pan/heater control Image input Giga-E Interface
Vehicle detector laser, loop, video detector (selectable) Dimension 332x206x595(mm), 17kg
Housing Rain/dust proof powder coating (IP 66 certification)
