Intelligent Integrated ITS

LPR Application

Tolling Evasion Prevention System

The system prevents illegal passing vehicles such as default vehicle, tolling evasion vehicles, etc. Capture images of tolling vehicles and their plate number to secure objective evidence for tolling fee collection, discount, default vehicles, etc. Furthermore, prevent tolling evasion vehicles by categories of vehicles and default vehicles. Also, in preparation for smart tolling system, the system receive tolling fee through plate recognition.

System Features

  • Acquisition clear image of plate number and other information by using high-resolution digital color camera (2.0M pirxels).
  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Speed and signal violation enforcement at the same time.
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • Provides various monitoring function (ex. Device state, work report, recognition result, etc.).
  • System self-equipment check and alarm function.
  • Improve tolling collection work efficiency by transmitting passing vehicles information to center.
  • Built-in self-recovery function (watchdog function).
  • Various powerful search functions of saved image and text information.

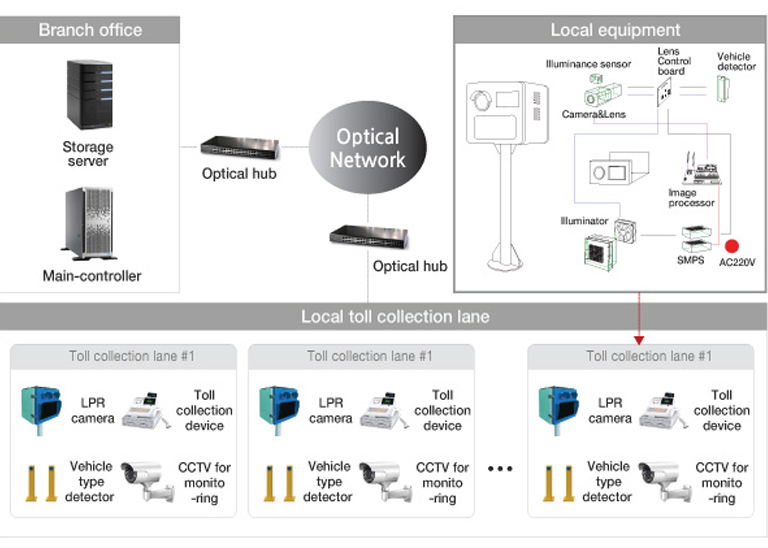

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Alarming black-list vehicles
  • Set-up by each local office
  • Traffic report function
  • Set access permissions for each officer

Search S/W

  • Search vehicles by time, daily, monthly
  • Print search result as excel sheet
  • Search vehicles by plate number and lane number
  • Search by each vehicles

Device Structure

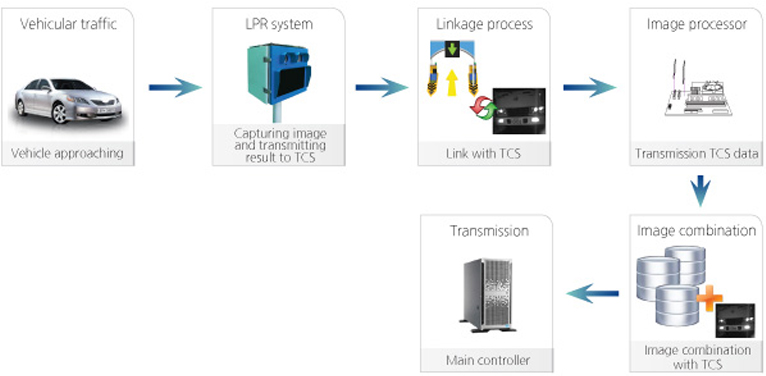

Operation Flow

Specification

Camera 1/1.8" Progressive scan CCD sensor 2.0Mega pixel CPU Intel I5-4690 Quad 3.5GHz
Lens Motorized zoom lens 8~80mm (10x) Memory DDR 2G PC3-12800 Dual (total 4GB)
Lighting device IR-LED (semi-permanent life of 10 million cycles or more) wavelength 730nm or more Data storage 32G SSD / 500G HDD (SATA3)
Vehicle detector Laser detector, loop detector, video detector (selectable) Power 500W power (ATX)
Operating temperature -20°C ~ 50°C RS-232 PCI RS-232 2 Port (Total 3 Ports – include interior port in mainboard)
Power supply AC 220V / 50 ~ 60Hz LAN PCI-E Intel GigE LAN Port
Housing Rain/dust proof powder coating (IP 66 certification) OS Window Embedded Standard7 32bit
Mainboard Gigabyte GA-H97M-D3H Durable edition
