Road Security System (Multi Function ITS)

Road security system provides safe life of the residents. LPR based Road Security system capturing all the vehicles passing by the road and provide the real-time information to operator of wanted, stolen and crime related vehicles with vehicle No. and color video images

System features

  • Excellent recognition rate (more than 98%) through a strong algorithm (KICT certificate, 2013).
  • Dual line number recognition using high-resolution digital color camera (2.0M pixels).
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • Consecutive image capture for three times per one vehicle - first: plate number, second: driving seat, third: loading part.
  • Built-in DSP image processing device.
  • Various powerful search functions of saved image and text information.
  • Low-power system configuration with solar panel (option)

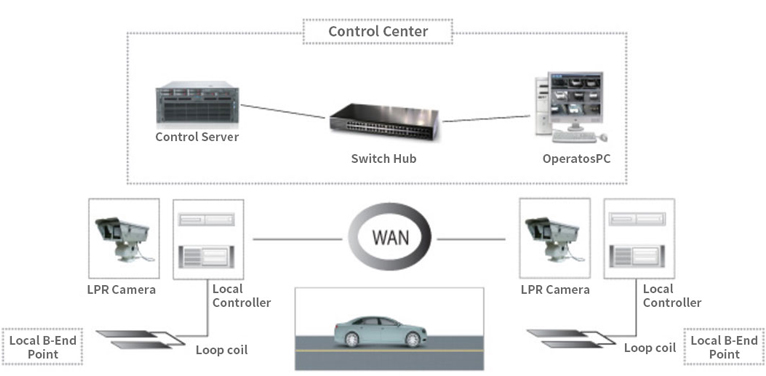

System Installation (example)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Alarming wanted(criminal) vehicles

Search S/W

  • Search vehicles by time, daily, monthly
  • Search 3 frames (plate, driver, cargo) by each vehicle
  • Register and search blacklist or wanted vehicles

Device Structure

Operation Flow

Specification

Camera CCD 2.0M Pixels CPU Intel G860 3.0GHz or higher or
DSP up to 1.2GHz
Lens Lens Motorized Zoom Lens, 8~80mm Memory 2GB DDR3 higher
Illuminator IR-LED (semi-permanent, more than 100M times) Data storage SSD 32GB, SATA 500G HDD higher
Control board Timing control, environmental responding Watchdog Built-in Watchdog Time
Power control Auto-recover, pan/heater control Image input Giga-E Interface
Vehicle detector laser, loop, video detector (selectable) Dimension 332x206x595(mm), 17kg
Housing Rain/dust proof powder coating (IP 66 certification)
