Intelligent Integrated ITS

LPR Application

Video Detection System

It provides a safe life of local residents. Recognizes speeding vehicle plate number passing road for 24 hours day and night. The result of recognition will be sent to center and automatically issue bills to vehicles in speeding violation after check of vehicle.

System Features

  • Acquisition clear image of plate number and other information by using high-resolution digital color camera (2.0M pirxels).
  • Capture clear image even 150km/h speeding vehicles by using HD digital camera
  • No risk of damage to the road due to not construction of loop and easy to maintenance.
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • IR-LED Illuminator built-in : It does not interfere with the driver's vision.
  • Be able to recognize plate number plate of bike.
  • Various powerful search functions of saved image and text information.
  • Semi-permanent IR LED light: more than 100M times of life cycle.
  • Low-power system configuration with solar panel (option)

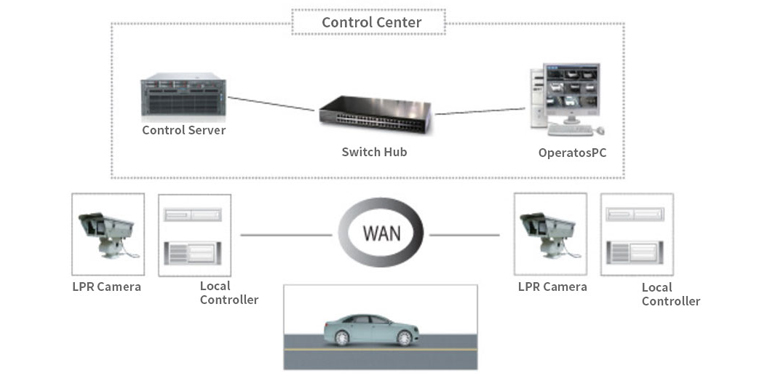

System Installation (example)

  • Applicable to all road ITS systems (road crime prevention, crime prevention, speed violation, bus-only lane enforcement system, etc.)

Operation S/W

Center Management S/W

  • Display real-time passing vehicles
  • Passing time and plate number
  • Display result of recognition
  • Analysis function
  • Set access permissions for each officer

Search S/W

  • Search vehicles by time, daily, monthly
  • Search 3 frames (plate, driver, cargo) by each vehicle
  • Register and search blacklist or wanted vehicles
  • Print search result as excel sheet
  • Search vehicles by plate number and lane number

Device Structure

Operation Flow

Specification

Camera CCD 2.0M Pixels CPU Intel G860 3.0GHz higher
Lens Lens Motorized Zoom Lens, 8~80mm Memory 2GB DDR3 higher
Illuminator IR-LED (semi-permanent, more than 100M times) Data storage SSD 32GB, SATA 500G HDD higher
Control board Timing control, environmental responding Watchdog Built-in (recover function)
Power control Auto-recover, pan/heater control Image input Giga-E Interface
Vehicle detector Video, raser detector (selectable) Dimension 332x206x595(mm), 17Kg
Housing Rain/dust proof powder coating (IP 66 certification)
